PSDG-48 Series
Fully integrated 48W PSU
Hi-Rel standard compliance made easy
The PSDG-48 series is a fully integrated COTS multi-output 48W isolated power supply board mount module. Dedicated to 24 & 28VDC military and High Reliability applications, MIL-STD-461, MIL-STD-704, MIL-STD-1275, ABD100 and DO160 power supply requirements are all built into this unique module :
- Integrated EMI filter,
- Reverse polarity protection,
- Hold-up function (50ms transparency timing managed with external capacitor),
- High & low input voltage transients and inrush current limit,
- Short circuit and over-voltage protected outputs,
- -40°C to +105°C full load case operating temperature range,
- Ideal for all rugged applications complying with MIL-STD-202 & 810 for altitude, humidity, temperature shocks & cycles, mechanical vibrations and shocks.
The PSDG series use a fixed high frequency switching topology providing a high power density, a low pro-file package and excellent reliability. It is also fully encapsulated with thermally conductive resin for optimal power dissipation in harsh environments.
- Complete power supply efficiency up to 87%
48W integrated power supply 24 & 28VDC input, multi-outputs board mount module
- Permanent output voltage : 16 – 60Vdc
- High voltage transients: up to 100Vdc/50ms (MIL-STD-1275), 80V/100ms (DO160, MIL-STD-704)
- Low voltage transients: down to 12V / 1s (MIL-STD-1275 Initial engagement surge).
- UVLO: 12.2Vdc (turn on), 10.0Vdc (turn off)
- EMI: built in differential and common mode filtering to comply with MIL-STD-461, DO160…

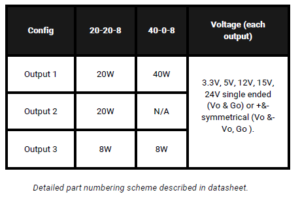

Output specifications
Auxilary features
- Black anodized machined aluminium case
- 3.6″ x 2.1″ x 0.35″ ( 91 x 54 x 9 mm )
- Four mounting screw holes 0.122” (3.1mm)
- General On/Off
- Individual outputs On/Off (optional)
- Switching frequency Sync input (optional)
- -55°C startup operating temperature (optional)
- Screening and serialization (optional)
Case dimensions
- Black anodized machined aluminium case
- 3.6″ x 2.1″ x 0.35″ ( 91 x 54 x 9 mm )
- Four mounting screw holes 0.122” (3.1mm)
