MGDM-500
Hi-Rel Grade, DC/DC Converter, 500 W
General Characteristics
- Additional functions : on/off, sense
- Galvanic isolation input/output : 1500 Vdc
- Nominal power up to : 500 W
- Protections : input undervoltage lockout, output current limitation, output overvoltage, over temperature
- Switching frequency : 330 KHz
- Synchronization
- Trim adjustment : 80 to 110 %
- RoHs
Key Features
- No load to full load operation
- Single output
- Soft start
- Standard half brick package
Series Description
The MGDM-500 series features a range of 500W military grade isolated dc/dc converters with a wide input voltage range and a large choice of output voltage from 12 Vdc to 48 Vdc.
The series switches at fixed frequency, the converter is based on a forward topology, and uses magnetic feedback technology instead of classical optocoupler for an improved reliability. The converter does not embed complex logic circuitry. Based on double interleaved forward topology, the MGDM-500 has outstanding conducted noise performances. The converter features multiple functions.
The output voltage trim allows users to slightly change the output voltage value with only one low power resistor. The switching frequency can be slightly shifted to avoid radar bandwidth or simply synchronized to another converter to reduce switching noise. The series is equipped with useful protections like soft-start for inrush current limitation, overload and short circuit protection, and over temperature shutdown. The MGDM-500 is especially suitable for demanding applications. It comes in a fully potted metallic half brick case that can operate with temperature ranging from -40 to 105°C.
Read more ...The output voltage trim allows users to slightly change the output voltage value with only one low power resistor. The switching frequency can be slightly shifted to avoid radar bandwidth or simply synchronized to another converter to reduce switching noise. The series is equipped with useful protections like soft-start for inrush current limitation, overload and short circuit protection, and over temperature shutdown. The MGDM-500 is especially suitable for demanding applications. It comes in a fully potted metallic half brick case that can operate with temperature ranging from -40 to 105°C.
Product Selection
This product selection table includes all available versions. Other references may be offered – see technical datasheets.
For more information, please consult factory.
| Reference | Status | Output power | Input voltage | Max. transient input voltage | Switching frequency | Output voltage | Output current | Min. transient input voltage | Output Nbr | Max power per channel | Case dimensions | Standard electrical functions | Operating case temp. range | Case material | Max power in drop out operation | UVLO range | Output voltage trim | Isolation voltage | Synchronization freq. range | Efficiency | Weight | Synchronization | Options | RoHS / SnPb |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| MGDS500HE | Active | 500 W | 9 - 36 Vdc | 40.0 Vdc / 100 ms | 250 KHz | 12 Vdc | 41.7 A | 8.5 Vdc / 1 s | S | 64 x 61 x 12.9 mm | UVLO, OCP, OVP, OTP, SYNC TRIM, SENSE | -40 to 105 °C | Aluminium alodined coating / Copper with gold finishing | 80 to 110 % | 1500 Vdc | 540 to 660 KHz | 91 % | 142 Grams | IN | S |  | |||
| MGDS500HI | Active | 500 W | 9 - 36 Vdc | 40.0 Vdc / 100 ms | 250 KHz | 24 Vdc | 20.8 A | 8.5 Vdc / 1 s | S | 64 x 61 x 12.9 mm | UVLO, OCP, OVP, OTP, SYNC TRIM, SENSE | -40 to 105 °C | Aluminium alodined coating / Copper with gold finishing | 80 to 110 % | 1500 Vdc | 540 to 660 KHz | 91 % | 142 Grams | IN | S | | |||
| MGDS500HJ | Active | 500 W | 9 - 36 Vdc | 40.0 Vdc / 100 ms | 250 KHz | 28 Vdc | 17.8 A | 8.5 Vdc / 1 s | S | 64 x 61 x 12.9 mm | UVLO, OCP, OVP, OTP, SYNC TRIM, SENSE | -40 to 105 °C | Aluminium alodined coating / Copper with gold finishing | 80 to 110 % | 1500 Vdc | 540 to 660 KHz | 91 % | 142 Grams | IN | S | | |||
| MGDS500HF | Active | 500 W | 9 - 36 Vdc | 40.0 Vdc / 100 ms | 250 KHz | 15 Vdc | 33.4 A | 8.5 Vdc / 1 s | S | 64 x 61 x 12.9 mm | UVLO, OCP, OVP, OTP, SYNC TRIM, SENSE | -40 to 105 °C | Aluminium alodined coating / Copper with gold finishing | 80 to 110 % | 1500 Vdc | 540 to 660 KHz | 91 % | 142 Grams | IN | S | | |||
| MGDS500HP | Active | 500 W | 9 - 36 Vdc | 40.0 Vdc / 100 ms | 250 KHz | 48 Vdc | 9.4 A | 8.5 Vdc / 1 s | S | 64 x 61 x 12.9 mm | UVLO, OCP, OVP, OTP, SYNC TRIM, SENSE | -40 to 105 °C | Aluminium alodined coating / Copper with gold finishing | 80 to 110 % | 1500 Vdc | 540 to 660 KHz | 91 % | 142 Grams | IN | S | | |||
| MGDS500OJ | Active | 500 W | 16 - 70 Vdc | 80.0 Vdc / 100 ms | 250 KHz | 28 Vdc | 17.8 A | 13.6 Vdc / 1 s | S | 64 x 61 x 12.9 mm | UVLO, OCP, OVP, OTP, SYNC TRIM, SENSE | -40 to 105 °C | Aluminium alodined coating / Copper with gold finishing | 80 to 110 % | 1500 Vdc | 540 to 660 KHz | 91 % | 142 Grams | IN | S | |
Output Nbr: S: Single output, B: Bi-outputs, D: Dual outputs, T: Triple outputs – Dual outputs products can be usable for single output or bi-outputs. Output Nbr E corresponds to a slave module (see DataSheet)
Case dimensions: L x W x H (maximum values in mm)
Standard electrical functions: Case: Case connection, OVLO: Input overvoltage lockout, UVLO: Input under voltage lockout, OCP: Output over current protection level, OPP: Output over power protection, OVP: Output over voltage protection level, SCP: Output short circuit protection, OTP: Over temperature protection, VIF: Pin for Input Current Ripple Reduction, SYNC: Pin for Synchronisation, TRIM: Pin for adjust ouput voltage, ITRIM: Pin for adjustement ouput current limitation, CC: Pin for capacitor charged signal, CD: Pin for capacitor discharged signal, UVLOadj: Pin for level undervoltage lockout adjust, VREF: Pin for output internal voltage reference, PF: Pin for power fail signal, SENSE: Pin for voltage regulation, REV.POL: Reverse polarity protection, SHARE: Pin for output current parallel sharing
Status NPR: Not preferred for new Design
Options: T Screening at start-up -55° C, Y High isolation 3000 Vdc, M On/Off function, S Screening and serialization, F Synchronization function, P Share function
Technical Documentation

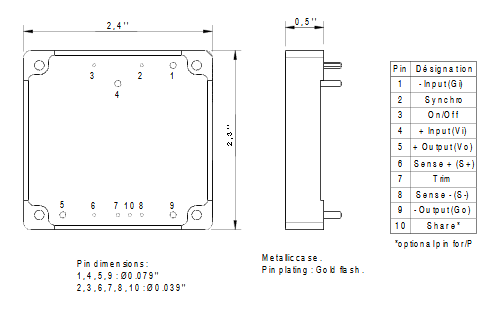

Pin Out
